The 8x8 pixel array is built into 64
individual cells to prevent light from the LEDs from mixing. The cell
array was made from 1/4" foam core board like that used in picture
frames.
|
|
Detail of the enclosure under
construction. Mahogany was used for the enclosure sides.
|
|
Ditto
|
|
The

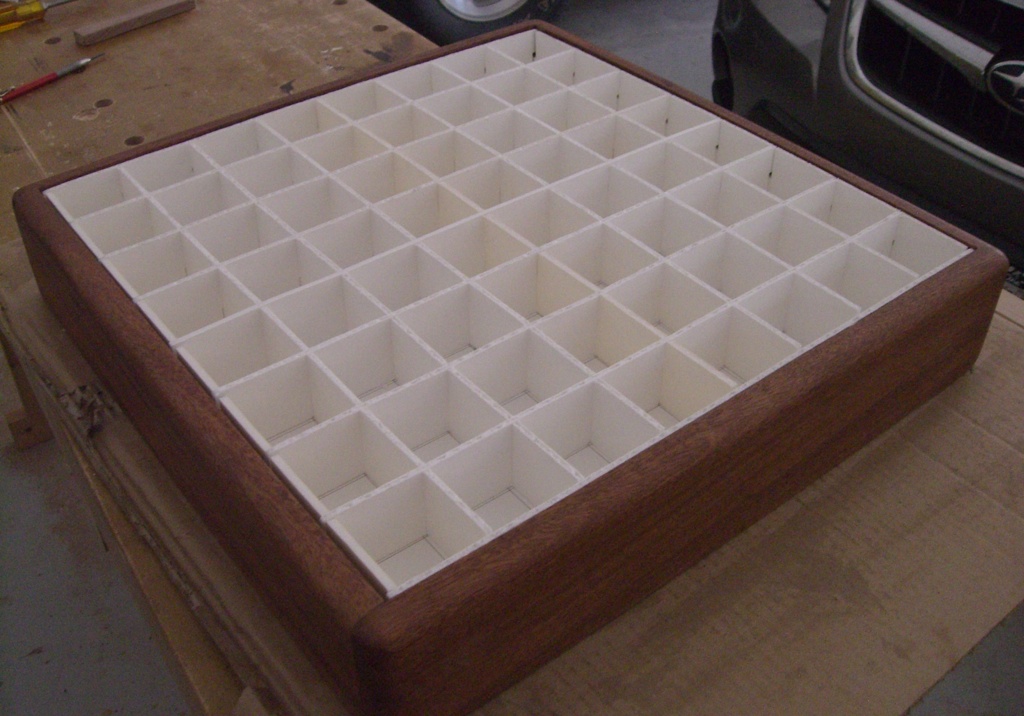

completed 64 cell array of foam core.
|
|
The
cell array being fitted into the enclosure for the first time.
|
|
Prototyping
the connections and the software for the Arduino processor (the blue
board) and the individually addressable RGB LEDs.
|
|
The
64 RGB LEDs taped down to the back of the big pixel enclosure. The back
was made from MDF which I painted black. Duct tape is great stuff !
|
|
Top
view of same.
|
|

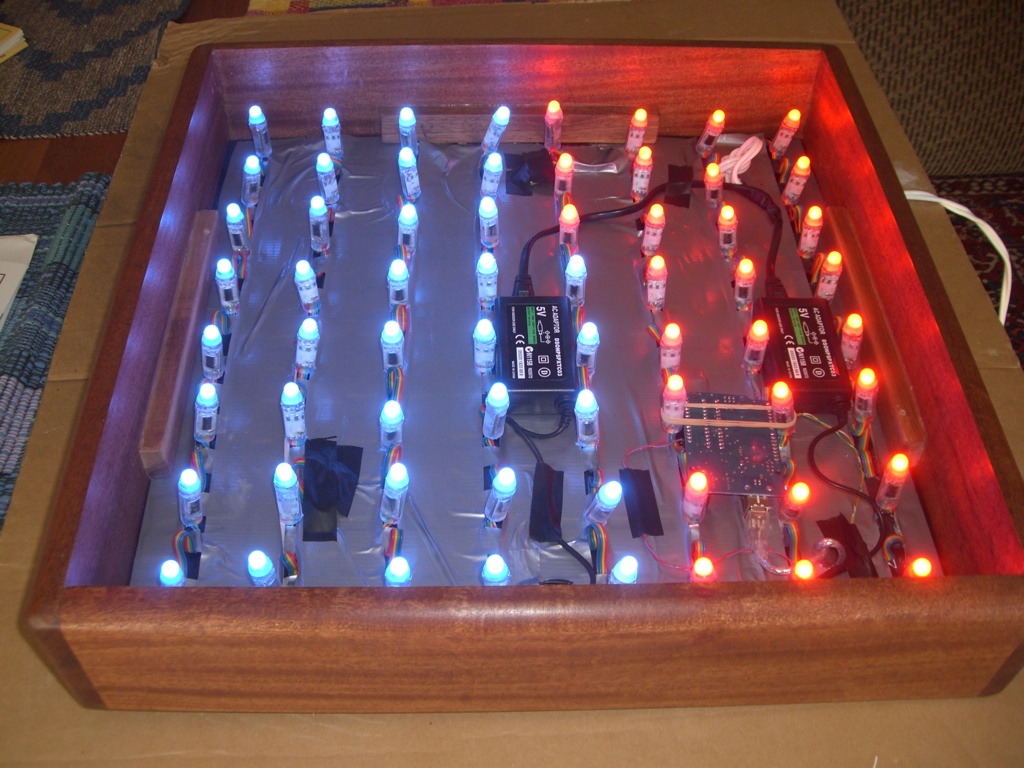

The
back of the enclosure has all of the electronics mounted to it. Here
you can see the dual power supplies and the Arduino processor. Two
power supplies were need to supply the current for the LEDs.
|
|
Another
view of same.
|
|
A
test to be sure things still worked after mounting the back with all of
the electronics into the enclosure.
|
|
Top
view of same.
|
|
A
close up.
|
|
After
testing, the 8x8 foam core array of cells is placed over the LEDs. This
was difficult getting all of the LEDs to stand up straight so
they could be pulled through the array. I needed Heathers help for this.
|
|
Finally
a piece of drafting mylar was cut to size and glued over the 8x8 cell
array to diffuse the light from the LEDs.
|
|
Another
view
|
|
A
close up view
|
|
Front
view of finished project.
|
|
The
back of the big pixels display. The coiled code is a USB cable
connected to the Arduino processor inside. I leave it permanently
connected to make it easy to reprogram the processor. I put pads on the
bottom and back so the enclosure can be set on a shelf or hung on a
wall.
|
|
Nice
view of the pretty wood. I used danish oil to darken the wood and then
wax to make it shine.
|
